Booster Pumps

Achieve optimum water flow and pressure for your dust suppression systems.

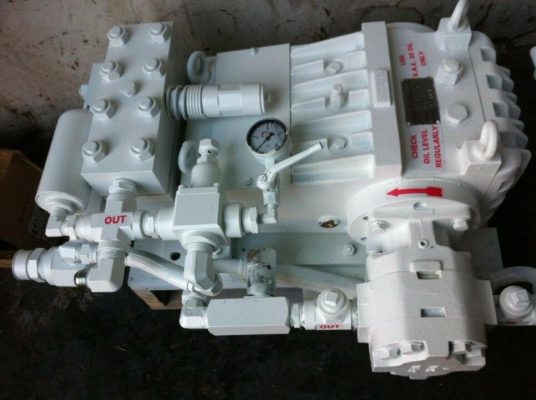

CDC booster pump

The CDC 150 booster pump provides optimum water flow and pressure for your dust suppression systems in continuous miners, road headers and other high water pressure applications.

It features a rugged design that’s built for maximum performance and reliability in the most severe conditions, and provides a long life with minimum maintenance requirements.

  • 2 variants to choose from (based on the incoming water pressure)
  • Electrically or hydraulically operated
  • Flame-proof
  • High-pressure, positive displacement


CDC provides support for applications with a 24-hour service exchange programme, ensuring minimal downtime and reduced client inventory requirements.

CDC – setting the standard for dust suppression technologies in open cast and underground mining.

Booster pump specifications

Booster pump spec

Max. speed 600 RPM
Max. rated capacity 150 l/min
Max. rated pressure 80 bar
Motor type 1.5 inch hydraulic gear motor (100 cc/rev)
Hydraulic motor ports 1 inch NPT
Max. power 25.4 kW
Temperature rating 82° C
Suction port size 1.5 inch JIC male
Discharge port size ¾ inch JIC male
Weight 250 kg
Pump type Positive displacement
Hydraulic motor in 1 inch NPT female
Hydraulic motor out 1 inch NPT female
Input power (kW) at discharge pressure (bar)
Discharge flow (LPM) RPM 10 20 40 70 80
50 200 1 2 4 8 9
76 300 2 3 7 12 13
101 400 2 4 9 15 18
150 600 3 7 13 23 26

24 hour service support (incl. service exchange units)

CDC is committed to 24-hour, 7-days a week support with service exchange units for pumps and fans together with fast repair turnaround times. All repairs are conducted in our own workshop. When you fit CDC equipment to your continuous miner or road header, you get excellent dust suppression equipment and a 100% commitment for round the clock field support. Our customer support engineers and service technicians are always available to assist you in the supply, operation and maintenance of all CDC dust suppression equipment.

We tailor all our equipment to suit clients’ exact specifications.

Speak to a dust control specialist:
